(1) Redundancy (2) Difference (3) Self-detection |
How to construct the safety loop with the reliability above PLd, the safety controller must become an important link. The safety loop consists of safety input, safety control and safety output subsystems, and the safety control "including safety relay, safety controller, safety PLC, etc." realizes the safety control function. Designers match different safety controllers to achieve the reliability level of the safety loop according to the number of products at the input end.
SM-1002 programmable controller | |
 | ·Is a configurable safety controller, which supports the input of various safety product components. ·Maximum support for 10 groups of dual-loop inputs. ·4-channel semiconductor safety output, expandable output module ·Input and output fault indicator light ·Safety certification: PL e, Cat: 4 |
 | Product selection |
product name | model | Safety input | Safe output | brand |
Safety controller | SM-1002 | 10CH | 4SO | LHS |
explain | You can enter up to 10 sets of dual-channel security products. Safety grating, emergency stop, safety door lock, reset, etc. Official website programming software download connection.：http://lhsafety.com.cn/showinfo-257-118-0.html | |||
| safety performance |
? Performance level (PL): PL e ? Security category (Cat.): Cat.4 ? Mission time (TM): 20 years ? Diagnostic coverage (DC/DC avg): 99% ? Safety Integrity Level (SIL): SIL3 ? Hardware Fault Margin (HFT): 1 ? Safe Failure Score (SFF): 99% ? Probability of dangerous failure (PFH d): 1.78E-9/h ? Stop Category: 0/1 | Complies with standard EN ISO13849 Complies with standard EN ISO13849 Complies with standard EN ISO13849 Complies with standard EN ISO13849 Conforms to standards IEC61508, IEC62061 Conforms to standards IEC61508, IEC62061 Conforms to standards IEC61508, IEC62061 Conforms to standards IEC61508, IEC62061 Complies with standard EN 60204-1 |
| Main technical parameters |
Power supply characteristics | ·Power supply voltage: 24VDC ·Voltage range: 20~30VDC ·Current loss: ≤35mA(24VDC) |
Input characteristics | ·Input current: ≤10mA(24VDC) ·Conductor resistance: ≤15Ω ·Input equipment: emergency stop button, safety door, two-hand button, safety light curtain, Heartbeat sensor, etc ·Input channel: 10 |
| Relay output characteristics | ·Number of contacts: 4SO (safety output) ·Contact fuse protection: 5A is fast, 3A is slow. ·Switching capacity: 2A/24VDC |
| Semiconductor output characteristics | ·Number of contacts: 4SO (safety output) ·Contact fuse protection: 10A is fast, 6A is slow. ·Switching capacity: 2A/24VDC |
Time characteristic | ·Suction buffer time: ≤100ms ·Release buffer time: ≤30ms ·Recovery time: Emergency stop operation: ≤30ms Power failure: ≤1000ms ·Short-term power interruption: 20ms |
control logic | ·Control logic: 10 kinds of logic, and new logic can be customized according to customer requirements. ·Delay setting time: 0s~99s ·Heartbeat monitoring frequency: 0.1Hz~10Hz ·Frequency output logic block: 0.1Hz~10Hz |
| Environmental characteristic parameters |
·Electromagnetic compatibility: comply with EN60947, EN61000-6-2 and EN61000-6-4. ·Vibration frequency: 10Hz~55Hz ·Vibration amplitude: 0.35mm ·Operating temperature: -20℃~+60℃ ·Storage temperature: -40℃~+85℃ ·Relative humidity: 10%~90% ·Overvoltage grade: Ⅲ ·Pollution level: 2 ·Altitude: ≤2000m ·Electrical clearance and creepage distance: in accordance with EN60947-1. | |
| Functional application parameters |

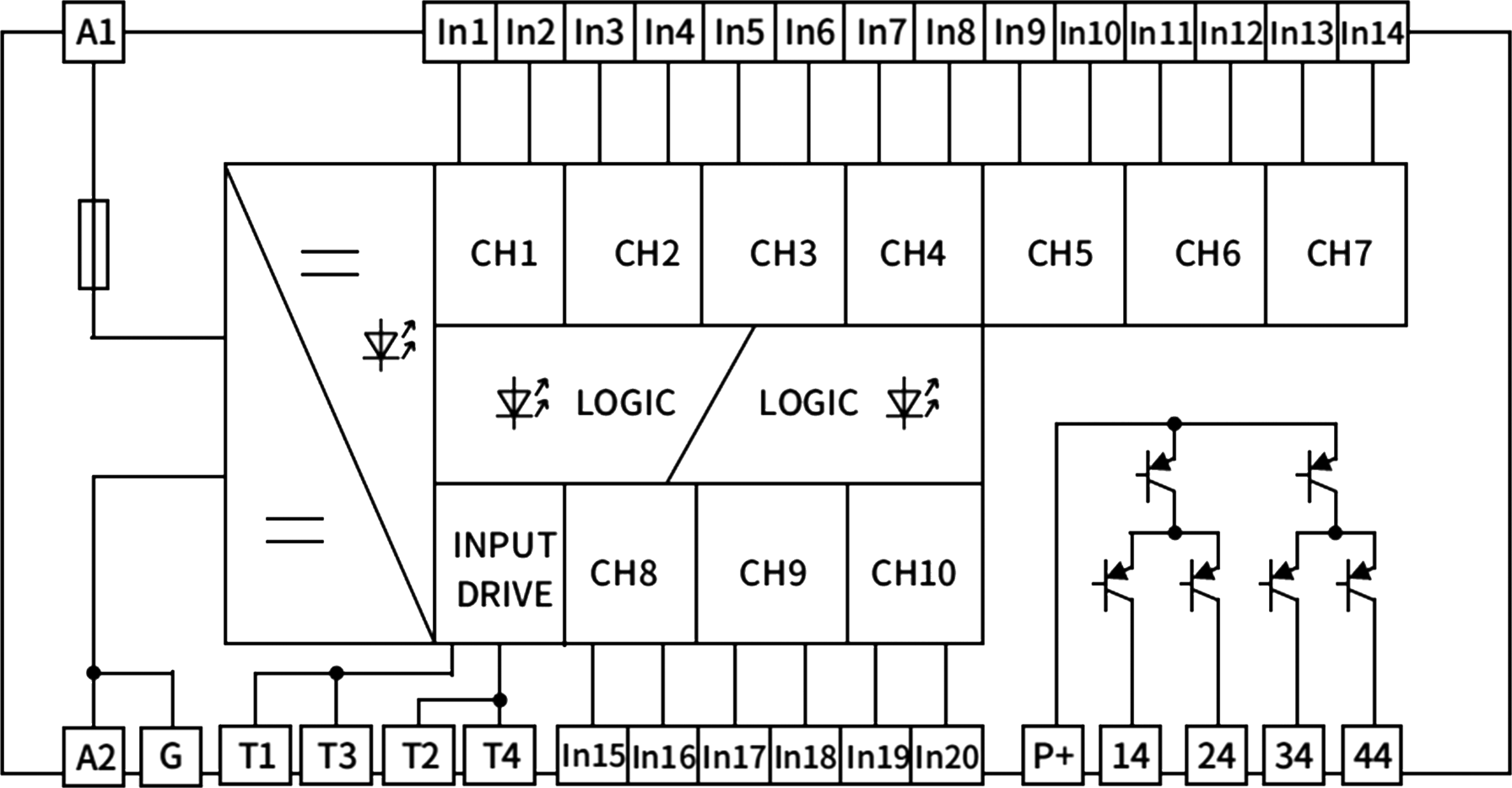

功能框圖 | 典型應(yīng)用 |
|
|

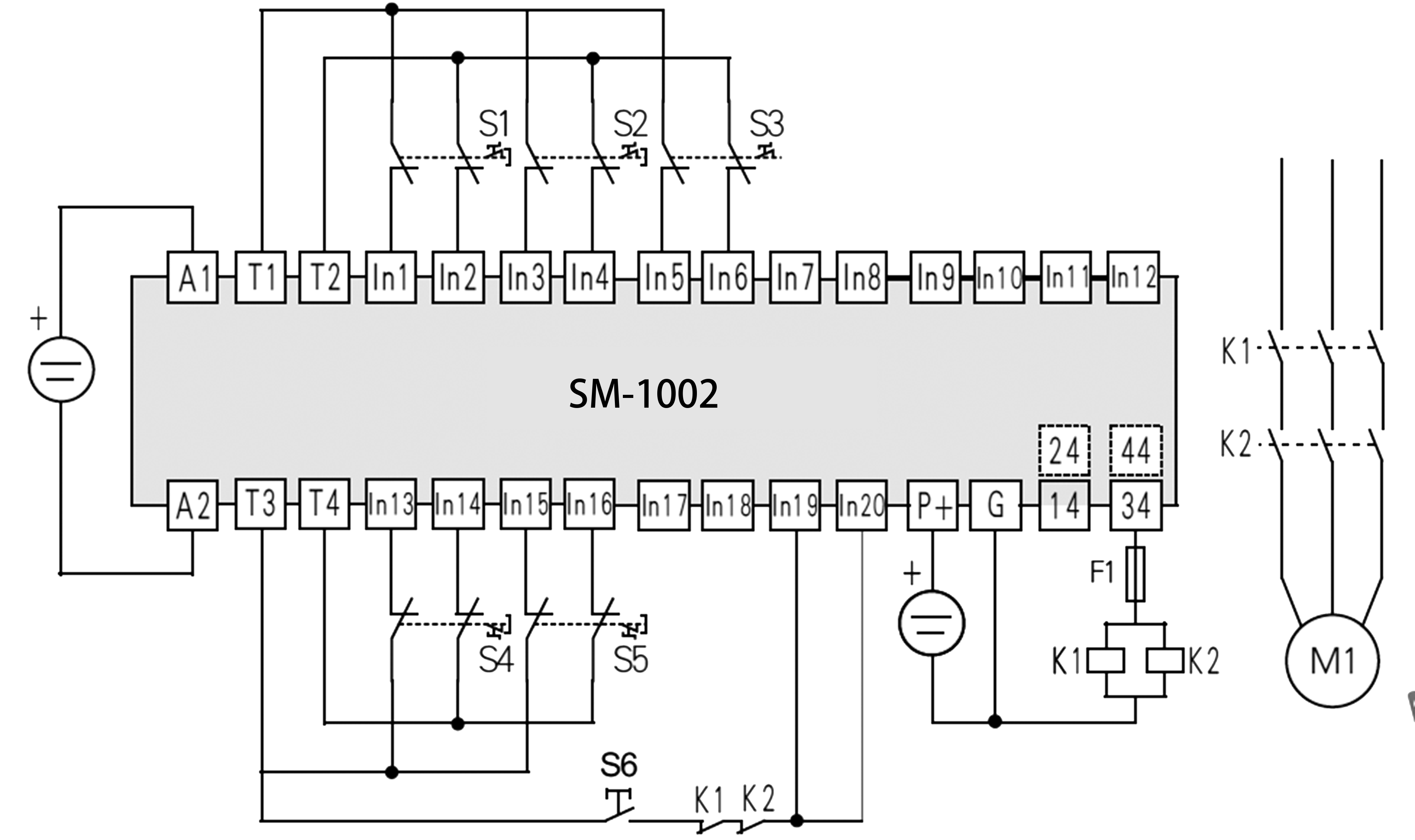

| 輸入元件：CH1（急停按鈕）；CH2（急停按鈕）； CH3 （急停按鈕） 輸入元件：CH7（急停按鈕）；CH8（急停按鈕）； CH10（復(fù)位按鈕） 控制邏輯：CH1&CH2&CH3 復(fù)位方式：手動復(fù)位 輸出延時：0s 安全等級：Cat.4 性能等級：PLe 安全完整性等級：SIL3 |
| Wiring diagram |
Power Supply |
|
input |  |  |  |
 |  |  | |
 |  | ||
reset |  |  | |
feedback |  |  | |
output |  |  |
